Главная страница /Продукция/Сдвижная столовая пила CNC/KIT-6132TD Hotels 45 Degree Wood Based Panel Saw Cut Sliding Table Woodworking Machinery

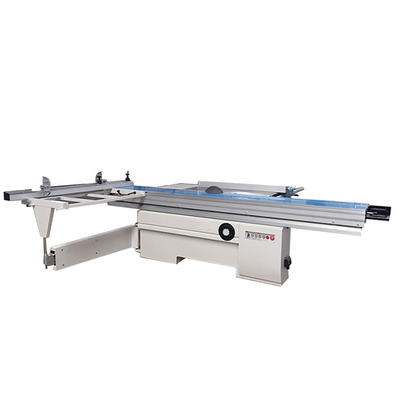

KIT-6132TD Hotels 45 Degree Wood Based Panel Saw Cut Sliding Table Woodworking Machinery

1 Set
MOQ
$2,300.00(1 - 2 Sets) $1,799.00(>=3 Sets)
цена
KIT-6132TD Hotels 45 Degree Wood Based Panel Saw Cut Sliding Table Woodworking Machinery
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Type: sliding table saw
Voltage: 220v/380v as your requirement
Dimension(L*W*H): 3200*3150mm*900mm
Power (kW): 5.5kw
Weight (KG): 800 kg
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works , Furniture factory
Warranty: 1 Year
Key Selling Points: Famous brand PLC
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, Gearbox, Pressure vessel, Engine
Usage: MDF Production
Name: Sliding Table Panel Saw
Size: 3200*3150mm*900mm
Gross cut capacity: 3200mm
Width of saw blade and rip fence: 1250mm
Saw blade diameter: 300mm
Saw blade's lifting and down: Manual blade up and down
Speed of main saw spindle: 4500/6000rpm
Main spindle diameter: 30mm
Tilting saw blade: 45tilting
Main motor: 5.5kw
Основная информация
Оплата и доставка Условия
Packaging Details: Stretch film with wooden case or as your request each sliding table panel saw
Supply Ability: 100 Set/Sets per Month
Характер продукции
Products Description

Features:

1. With oxidation treatment, movable table surface is beautiful and hard wearing.
2. Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
3. Motor power and voltage can be customized.
Advantages:
1. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
2. The saw axis is equipped after two dynamic balance so it is much more life-saving and high precision.
3. Movable table guide track is plating chromium steel bars structure, exact and durable.
Model
KIT-6132TD
KIT-45
KIT-400L
KIT-400K
Saw blade’s lifting and down
Manual blade up and down
Electric blade up and down
Electric blade up and down
Electric blade up and down
Angle tilting
Manual blade tilting
Manual blade tilting(Digital tilt angle display)
Manual blade tilting(Digital tilt angle display)
Electric blade tilting(Digital tilt angle display)
Dimension of sliding table
3200*360mm
3200*430mm
3200*390mm
3200*388mm
Gross cut capacity
3200mm
3200mm
3200mm
3200mm
Max. Sliding Width
1250mm
1250mm
1270mm
1270mm
Saw blade diameter
300mm
350mm
350 (400)mm
350 (400)mm
Speed of main saw spindle
4500/6000rpm
4200/5600rpm
5000rpm
5000rpm
Main spindle diameter
30mm
30mm
30mm
30mm
Tilting saw blade
0~45°
0~45°
0~45°
0~45°
Main motor
5.5kw
5.5kw
5.5kw
5.5kw
Net weight
800kg
800kg
930kg
950kg
Details Images



01.


 Angle Control Handle
 (Manual titling)


02.

Height Control Handle
(Manual up and down)
To raise or lower the saw blades,it just needs to adjust the Up/Down hand wheel on the right side of the machine body.



03.

Dust Collector Opening
It to connect with the dust collector.


04.

Double Saw Blade
Small saw blade marking line.
Large saw blade cutting board.
This structure is easy to cut all kinds of board.






05.

Positioning Baffle
Stable and non-shifting, to ensure the accuracy of cutting.


06.

Large guiding rule
No shift during cutting.
With magnifier, more accurate.


07.

Motor

With domestic high quality motor, low voltage, long lifetime.



08.

Feeding Frame
Aluminium feeding frame can bear more heavy wooden.Do not easy to hurt.

Precision rail

chrome plated round rod construction.

Pressure Utensil

The pressure utensil is used for pressing workpiece on the sliding table.

Mounting Safety Cover (ordinary)

Push knife

When the wood less than 120mm to be cut, the push knife shallbe used to prevent hand from approaching to the saw blade.
Product packaging
PACKAGING AND DELIVERY
We will ensure that your machine is clean before packaging.
We will add elastic film to the whole machine and spare parts to provide exquisite protection.
We will produce export standard sturdy wooden box packaging according to your requirements.
Customer Feedback
Customers from different countries give us good comments. The pictures of our communication for you reference.
Recommend Products
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the
furniture and wood products industry.
FAQ

FAQ

1. Do you provide installation services?
Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 70 countries around the world, such as Russia, Uzbekistan, the United States, Canada, Argentina, Colombia, Mexico, Peru, Chile, Ecuador, Romania, Vietnam, the Philippines, Australia, Malaysia, Thailand, Singapore, South Korea, Indonesia etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages ​​such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
